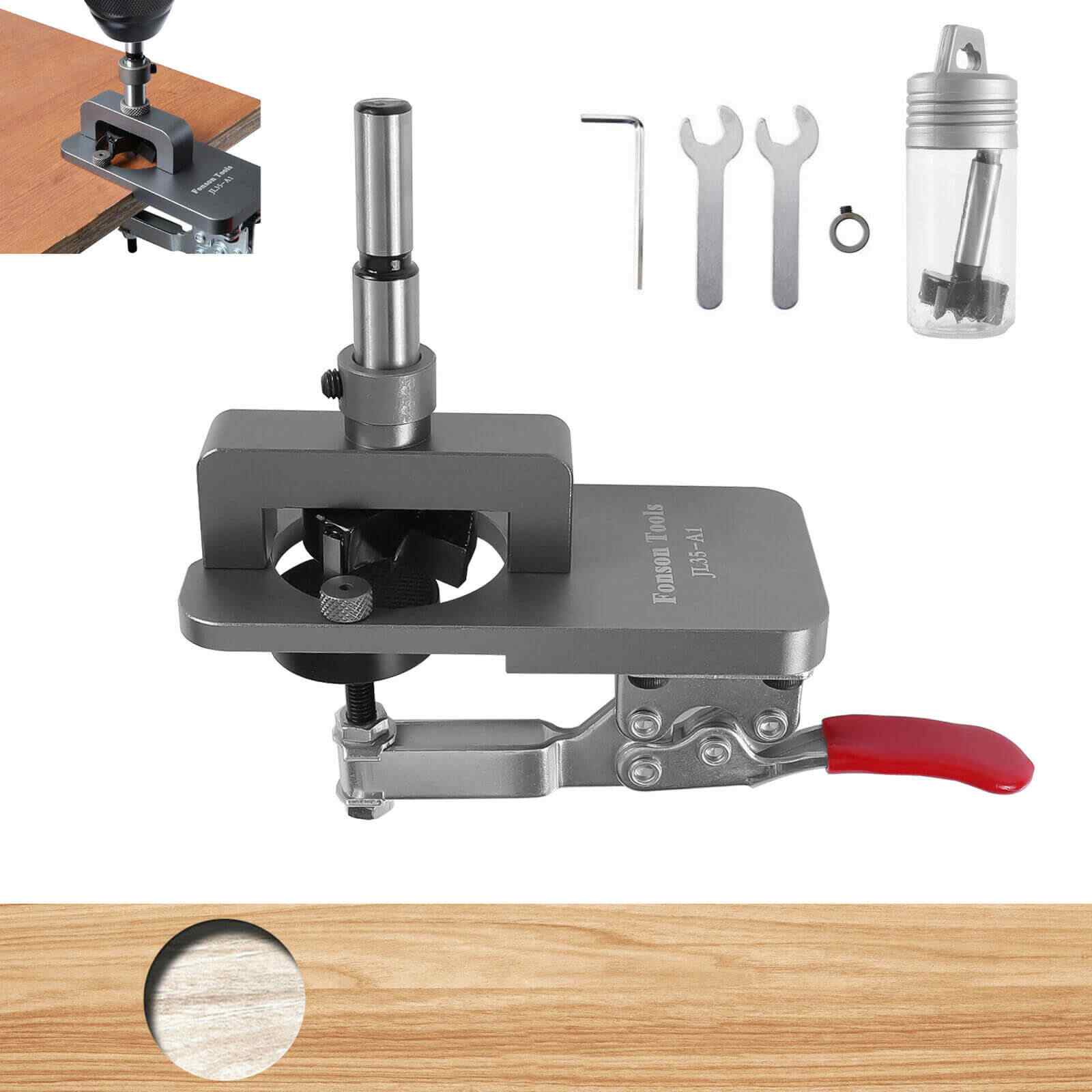

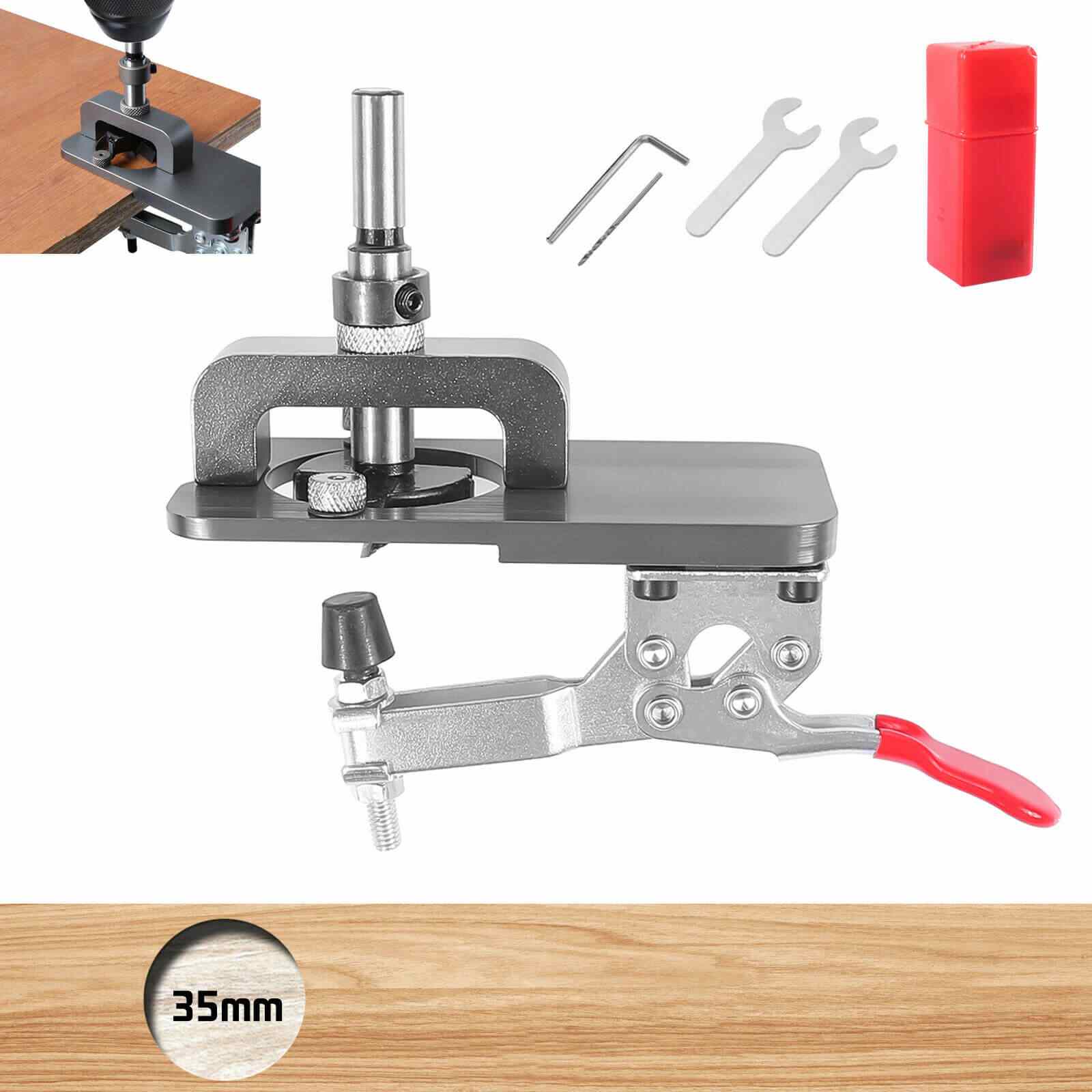

35mm Accurate Hinge Hole Jig Punch Locator Kit


:In stock

: 06FTY0104AGY



Durable Material

Made of high-quality aluminum alloy material, with precision manufacturing, durable and rust-proof, lasts a long service time.

Precise Positioning

The concealed hinge jig is specially designed for 35mm hinges. You can locate the hole directly without measuring, making cabinet door installation easier.

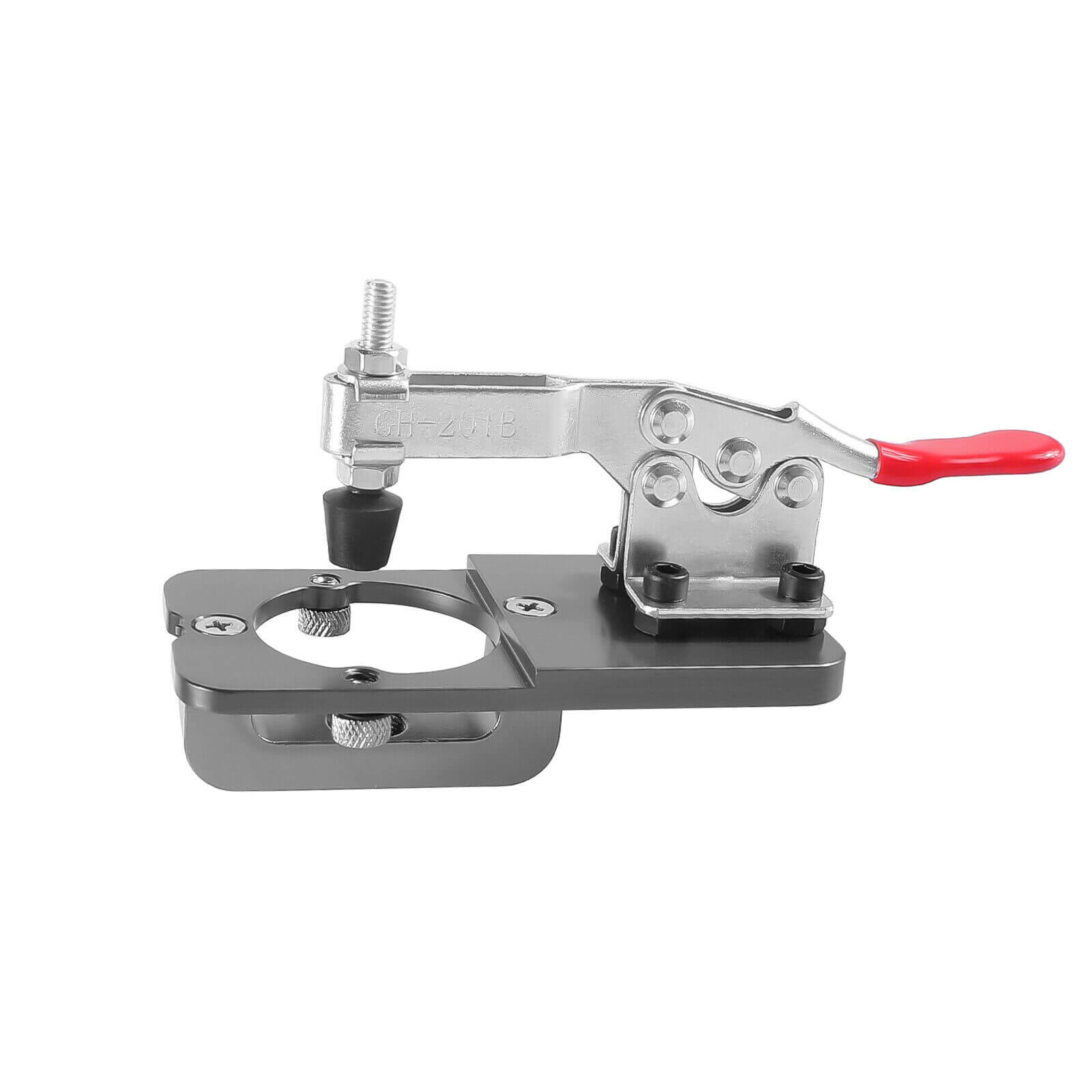

Adjustable Pressure Plate Design

The adjustable pressure plate and a quick fixing clip on the base support are convenient for you to accurately position, suitable for boards with a thickness of 15-25mm.

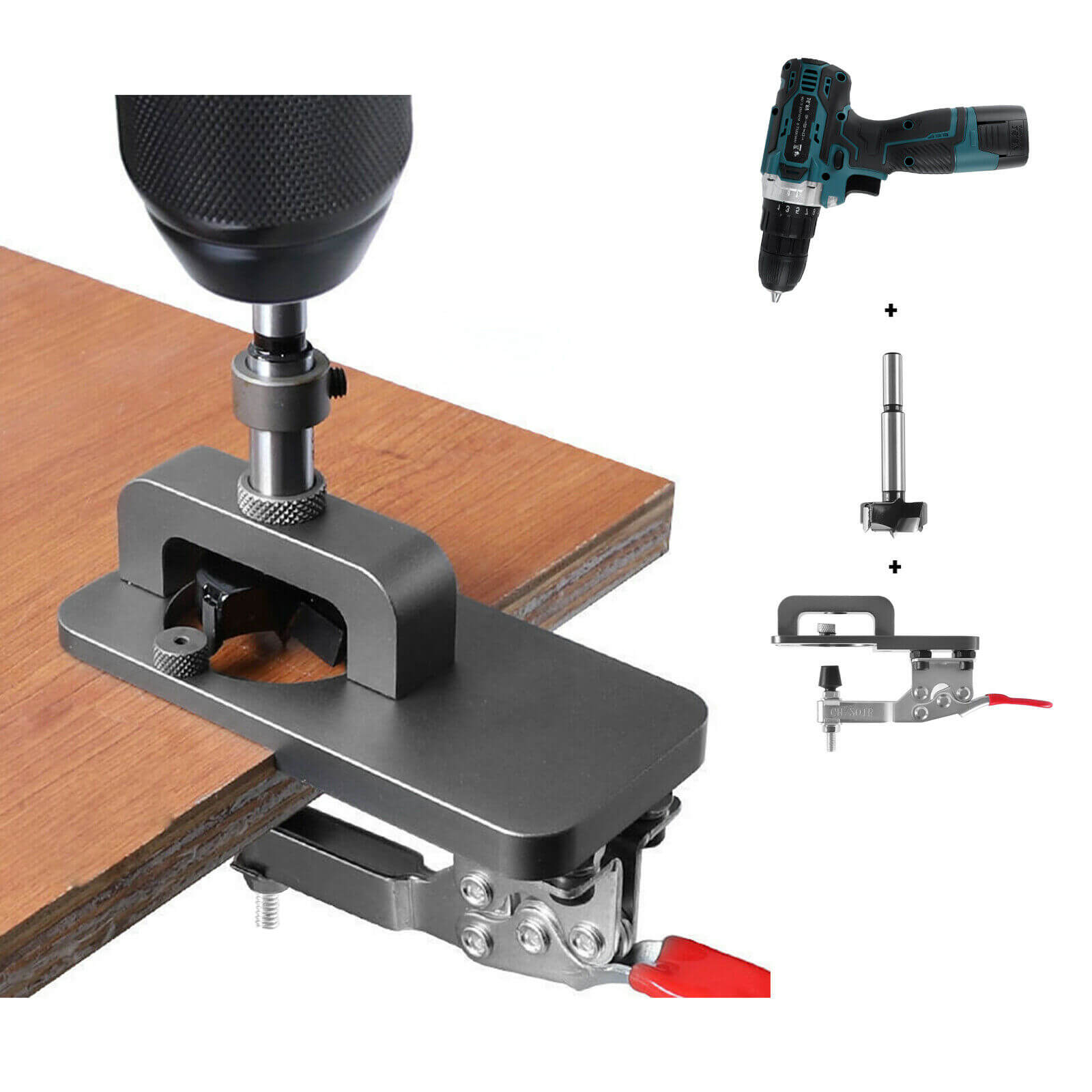

Easy to Use

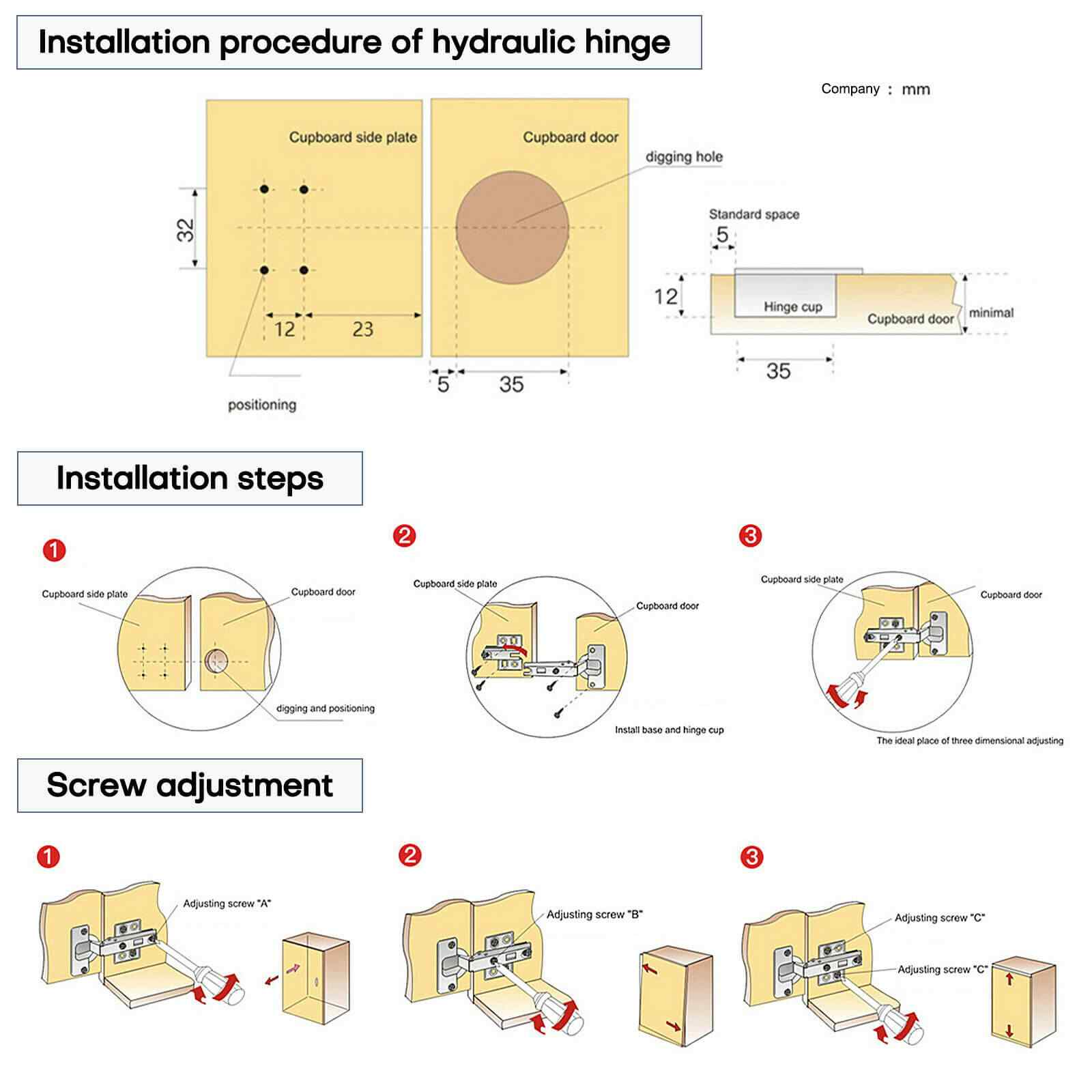

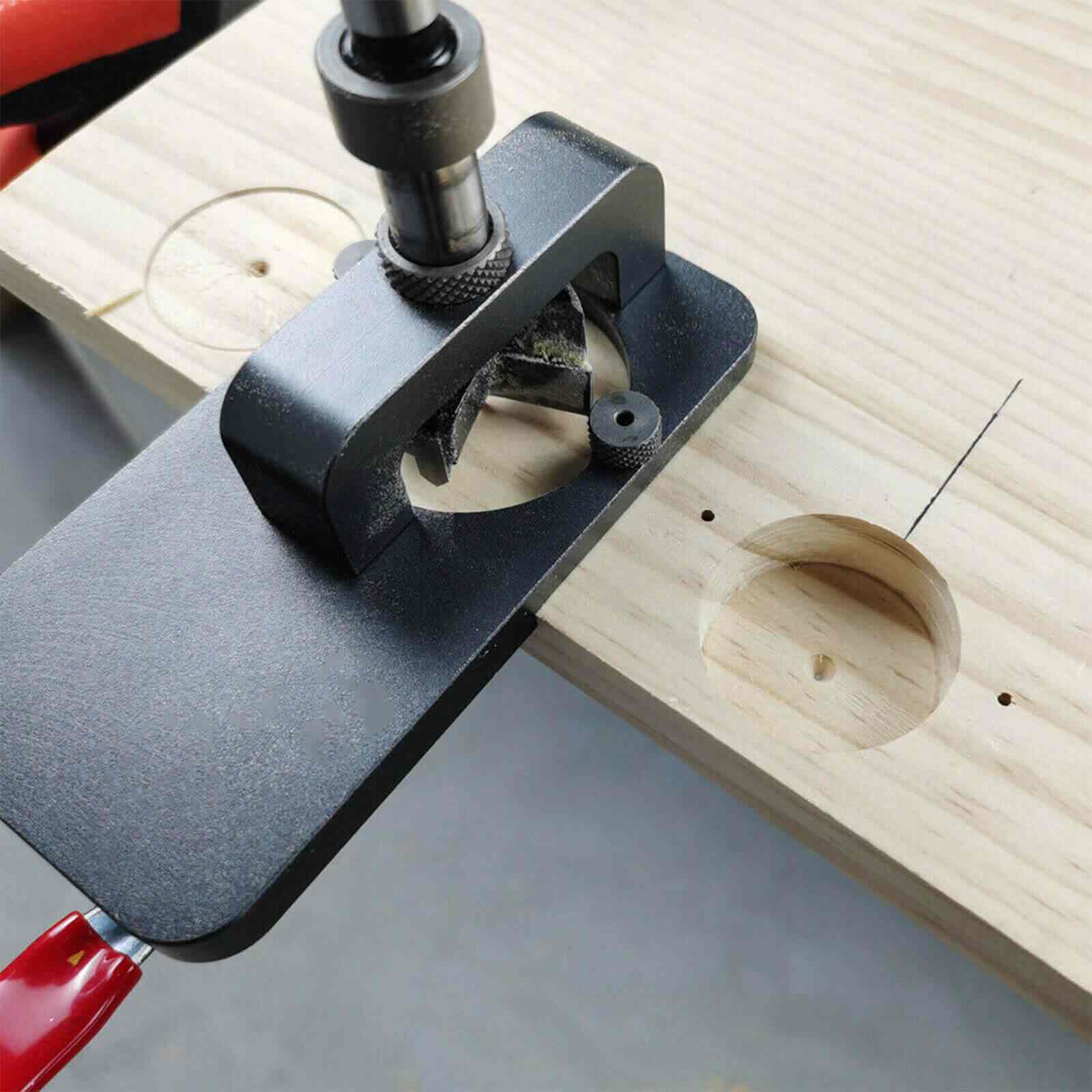

Install the hole opener, adjust the drilling depth to 12-13mm and adjust the pressing plate to the needed size, put the opener to the drilling position and lock the fast clip, then start the drilling.

Wide Application

This hinge jig lit is widely used for hinge opening installation, door hinge drilling position and woodworking hole auxiliary tools, perfect for woodworkers.



Material: aluminum alloy

Color: Gray

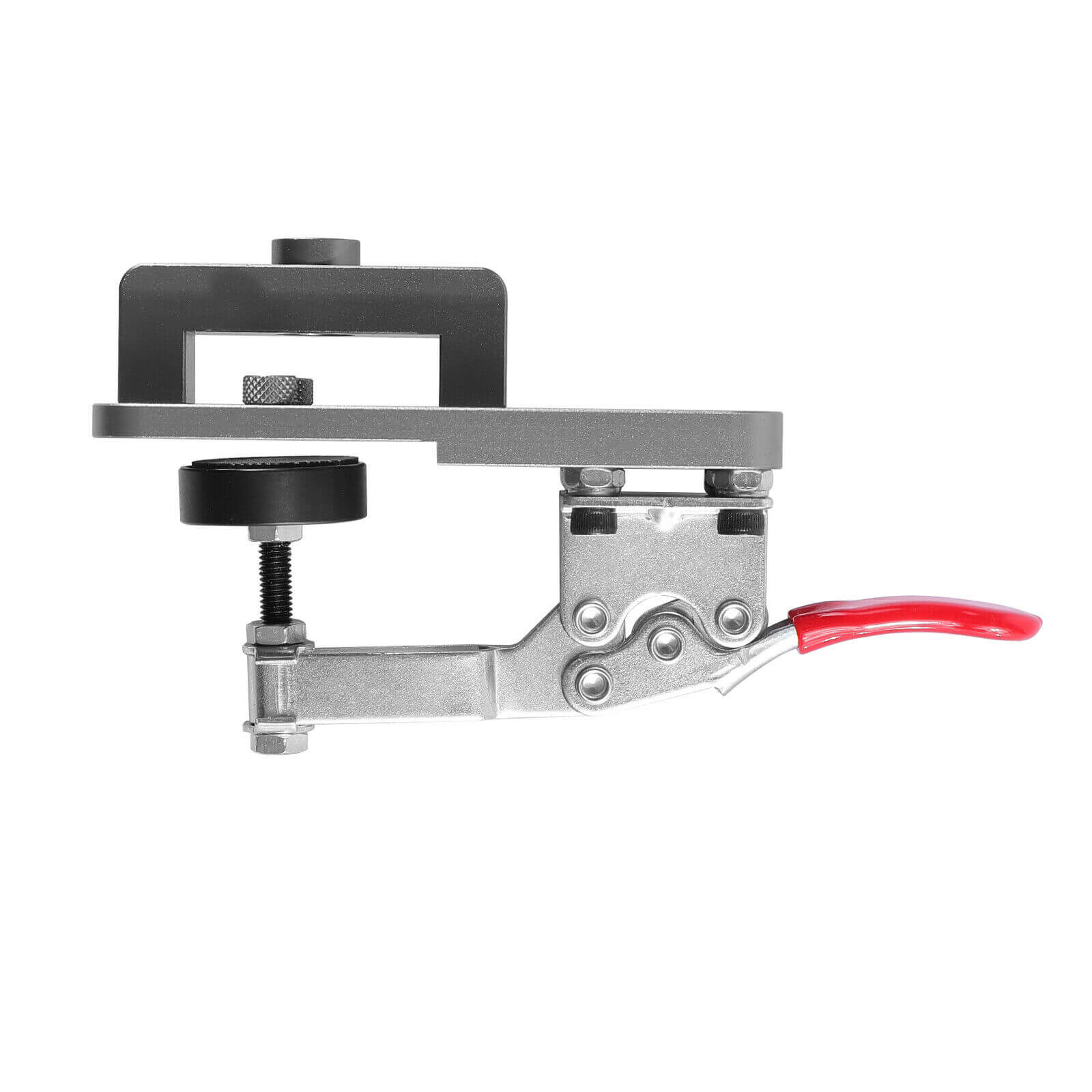

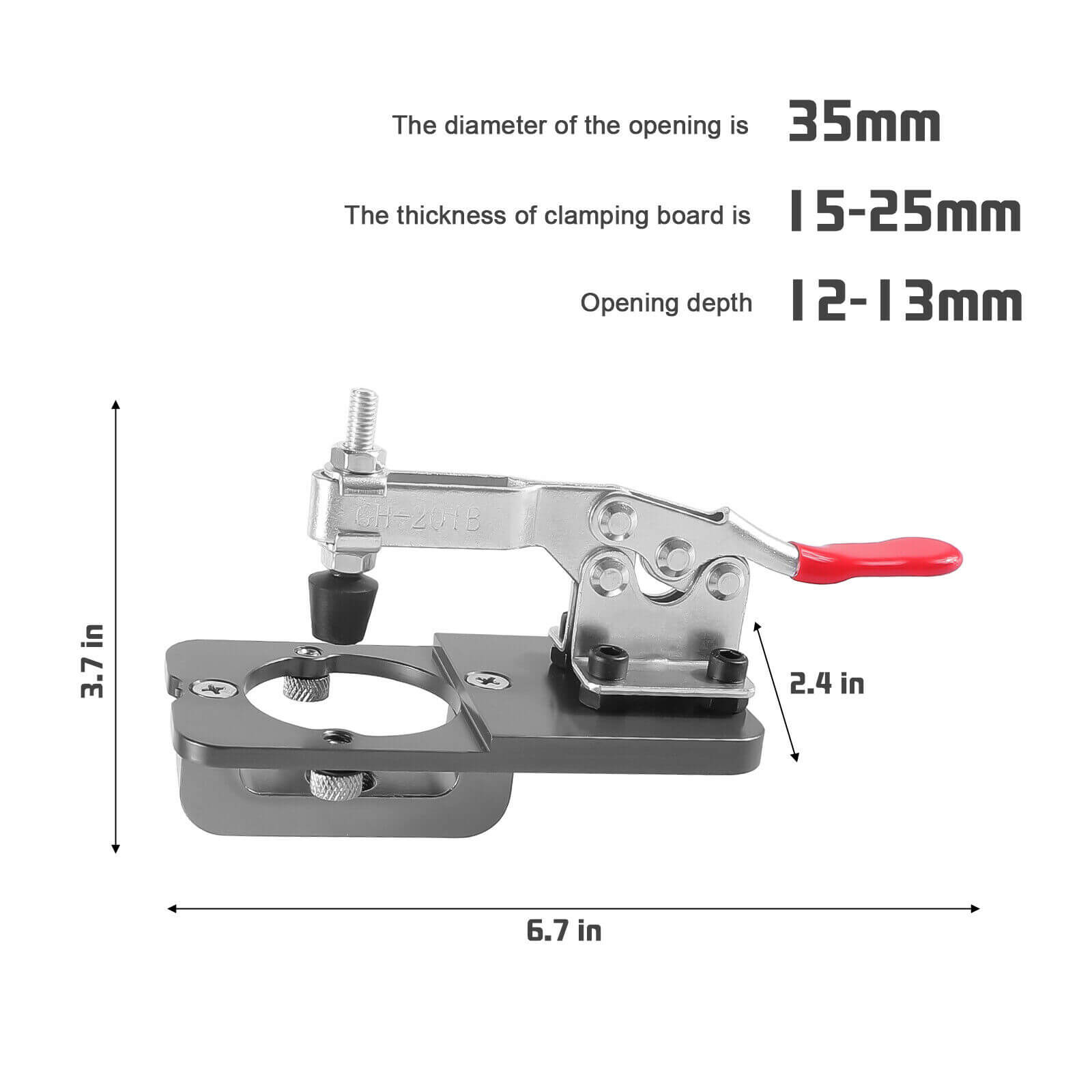

35-A1: 6.7 x 3.7 x 2.4 in

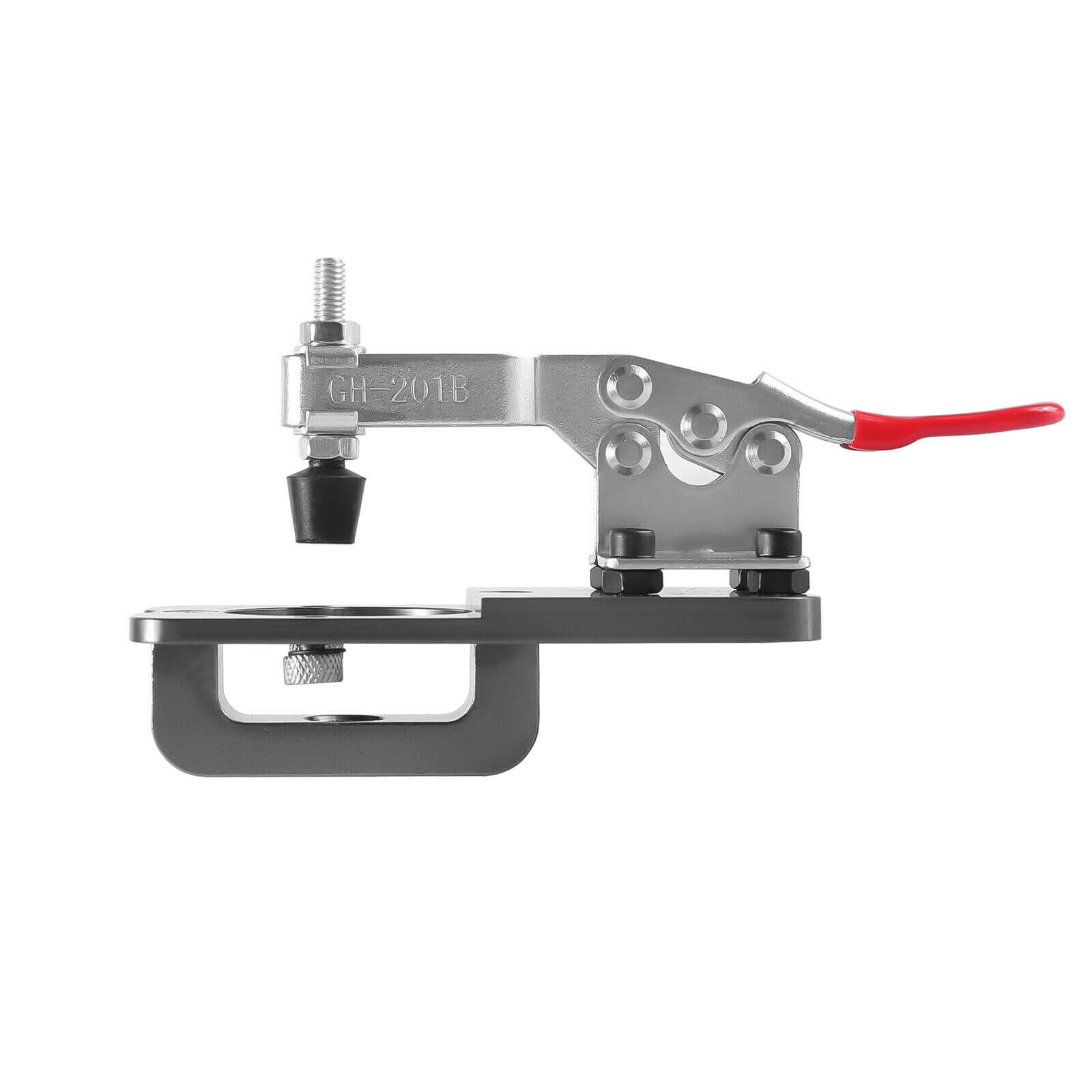

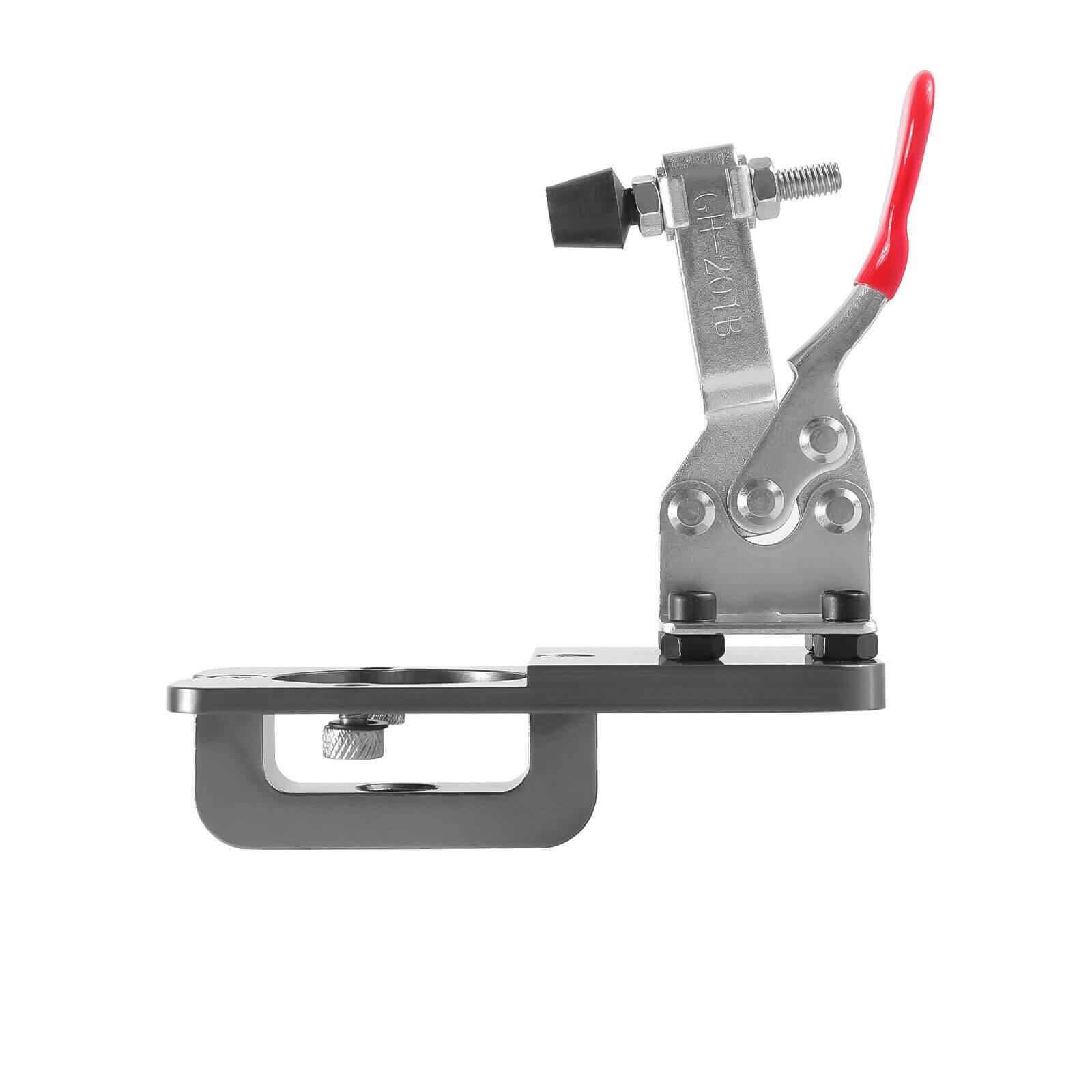

GH-201B: 6.7 x 2.4 x 3.7 in

Suitable Board Thickness: 15-25mm

Drilling Depth: 12-13mm

Hole Diameter: 35mm

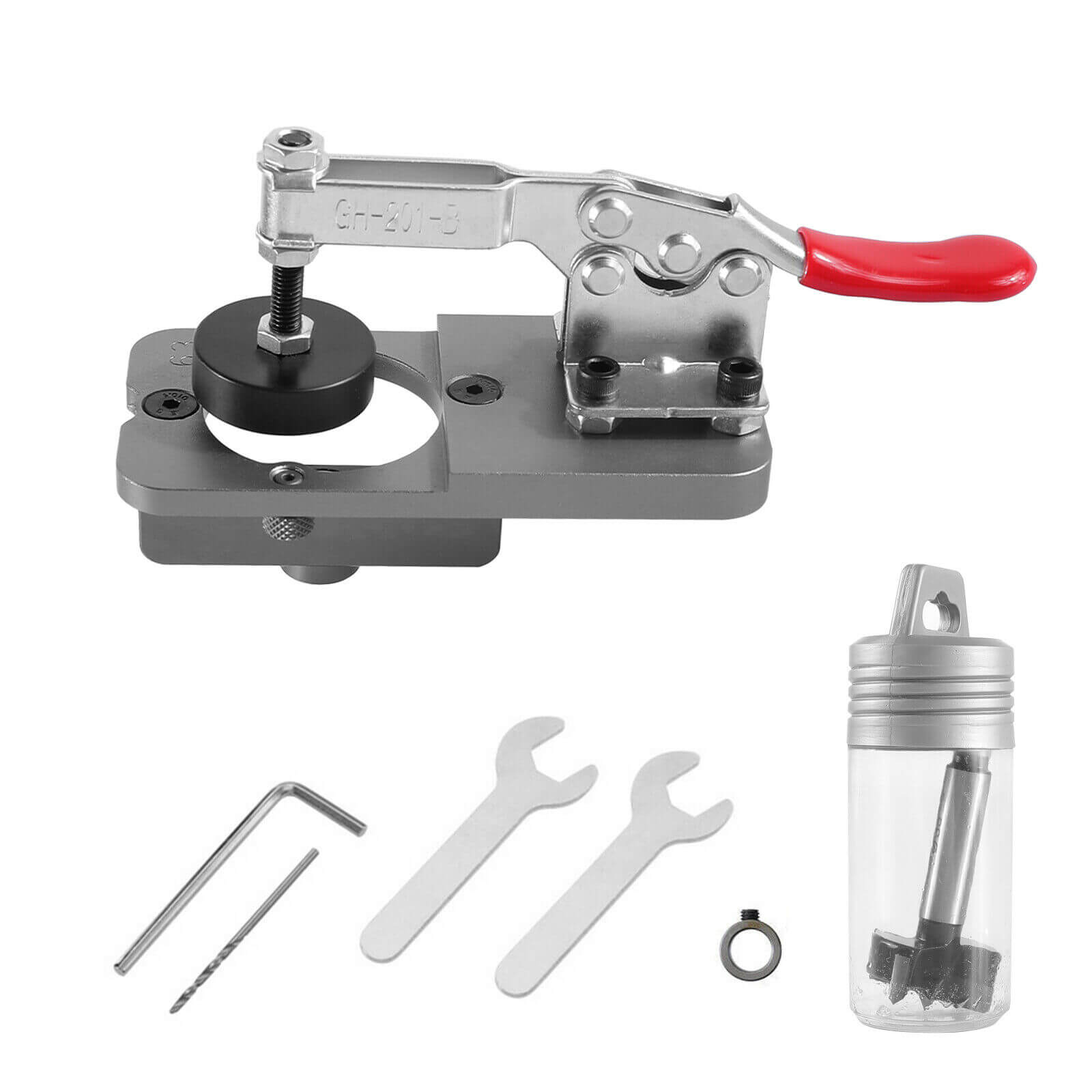

Packing Included:

1 x Punching Locator

1 x 35mm Drill Bit

1 x 2mm Drill Bit

2 x Wrench

1 x Inner Hexagon Wrench

1 x 2mm Drill Bit
